Diverse packaging solutions:
Our products for every sector
Bag-in-Box-systems
Square. Practical. Leakproof.
Product data:
Size/filling volume
- 2.25 l, 3 l, 5 l, 10 l, 20 l
- Special sizes available.
Version
- 4-edge seal bag with closure system
- Usually consisting of 2 layers of film on each side of the bag
Foil materials
- EVOH barrier film
- metallized PET barrier film
- Total thickness including inner film 0.116 — 0.127 mm per side
The pouch
The bag usually consists of 2 layers of film on each side of the bag. In contrast to a thick monofilm, the two thinner film layers, which can be moved against each other, offer increased flexibility and suppleness, which increases the load capacity during handling and transportation when filled. The inner layer in contact with the product consists of a food-safe PE film. Either an EVOH composite film (with less than 5% EVOH content and therefore recyclable) or metallized polyester is used as an oxygen and water vapor barrier. Bags without barrier properties are used for insensitive products or products with a short shelf life.
The box
As a rule, the customer provides their own folding box. This can either be glued or plugged in. It is important that there are no sharp corners and edges on the inside that can damage the film of the bag. If you don't have a folding box yet, ask us. We are happy to help with selection and purchase.
The closure system (tap, spout, post-mix valve, etc.)
The closure system consists of the filler bag, which is welded into the film and used to fill the bag, and the actual seal, which is placed on the bag after the filling process. It depends on the packaged liquid. It looks different with wine than with dairy products, and with lubricants it looks different than with cooking oils. One thing is clear: From our large selection, we will also find the right one for your application.
The recyclable Tecotap closure
New soon: The Tecotap closure will be recyclable. This increases the ability to sort out in recycling plants by dispensing with black plastic components. Thanks to the patented eco-rip tab, the plug stays on the tap, is not carelessly thrown away, but is also recycled. Small change - big effect.
The environmental box
Bag-in-box packaging is environmentally friendly for several reasons:
- When folded, no air is transported when unfilled.
- Thanks to the cuboid shape, the boxes can be easily stacked and transported without wasting space, even when filled.
- Plastic film is significantly lighter than glass and therefore the packaging weighs much less relative to the content.
- The production of cardboard and bags emits less greenhouse gases than the production of glass.
- Space-saving disposal and good separation and sorting properties in recycling plants.
- When removed, the bag adapts to the filling volume so that no oxygen gets to the goods and spoils them. Resource-saving use of food.
In addition to wholesale and retail beverage packaging for wine and juices, bag-in-box packaging is also used in hotels and restaurants, including post-mix drinks (concentrates) and in industrial sectors. For dairy products, cooking oils, sauces or liquid eggs for commercial kitchens as well as in the chemical industry or for lubricants in the automotive industry. Cleaning agents are also increasingly being delivered in large containers in bag-in box systems.
Any more questions?
Inserts (three-side sealing pouches)
Sealed on three sides, open at the top, for versatile use.
Product data:
Size/filling volume
- according to customer requirements
Version
- 3-edge seal bag
Materials
- aluminium foil, each with a layer of PE on the inside and on the outside
The use is a three-edge sealed bag, which can be made from different films. We manufacture from aluminum composite films and PE compounds so that oxygen, light and moisture remain outside. As the name suggests, the three-edge seal bag has three sealed sides and one open side. Tell us your desired size and we will make it to measure.
Benefits
Can be welded and vacuum sealed Highest product protection. Good puncture resistance
Many of our customers use the bags to pack, store and transport chemicals or pharmaceutical substances. By individually adapting the dimensions to the respective product, they can be found in a wide variety of industrial sectors, wherever barrier layers are required.
Any more questions?
Gas analysis bags (aluminium composite)
Step on the gas: aluminium composite film, sealed on all 4 sides with sealed-in hose for filling and withdrawing gas.
Product data:
Size/filling volume
- Filling volume 1 to 200 l
Version
- single or double chamber bag
Materials
- aluminium foil, each with a layer of PE on the inside and on the outside
Gas analysis bags are closed four-edge sealed bags with sealed tubing. They are made from a durable aluminum composite, which is laminated with a thin PE film on the inside and outside. The gas is filled and removed via a hose with a cap. They can be designed with one chamber or with two chambers or even with two opposite tubes.
Benefits
Completely gas-tight film. No leakage losses.
Customers for this product are primarily institutes and universities that are active in the field of gas analysis. They are used for respiratory gas analyses in the medical sector, but they also help with exhaust gas measurement in the automotive industry.
Any more questions?
Block bottom bags (aluminium composite)
Rectangular stand-up pouch for carton lining.
Product data:
Size/filling volume
- according to customer requirements
Version
- ready-made floor
Materials
- aluminium foil, each with a layer of PE on the inside and on the outside
The log bottom bag is a variant of the round bottom bag. The difference lies in the base shape, which is square here, suitable for lining boxes and boxes. A special folding technique in manufacturing makes it a practical inline liner for products that must be stored or transported in rectangular containers.
Benefits
Aromaproof, waterproof, suitable for space-saving storage and stacking
Do you want to protect your aroma and store it in a space-saving way? Or should no moisture get on your product? Then you should think about using a log bottom bag as an inline liner for your secondary container. Widely used in the food and chemical industries. Suitable for all industries
Any more questions?
Round-bottom bags (aluminium composite)
A body with two sealing seams and round bottom insert made of aluminium composite film.
Product data:
Size/filling volume
- Diameter 110 mm to 580 mm
- Height up to 1400 mm
Version
- Open at the top
Materials
- Aluminum composite film (from outside to inside):
PET (or PP), aluminum foil, PE (or PP)
The round bottom bag is semi-automatically handmade. It consists of a tubular body with two sealing seams and a round base, which is welded to the body using a special process. The flexibility of packaging and the use of high-quality composite films make it possible to completely remove the contents. The film used guarantees a 100% water vapor and oxygen barrier. Would you like to bottle a hot liquid? No problem — up to 155° Celsius is possible.
Benefits
For high temperatures For sensitive products. Best barrier properties.
Thanks to its strength and temperature stability, it is the first choice for reactive hotmelt, a very sensitive product in the adhesive industry. It is used as a storage container for filling, storing and transporting liquids, viscous or even powdered media. It gets stability and additional protection when used in a cylindrical cardboard case.
Any more questions?
Not sure which packaging is right for you?
We will work with you to find the right packaging. Safe
We look forward to receiving a non-binding enquiry and a description of your packaging task from our team of consultants.

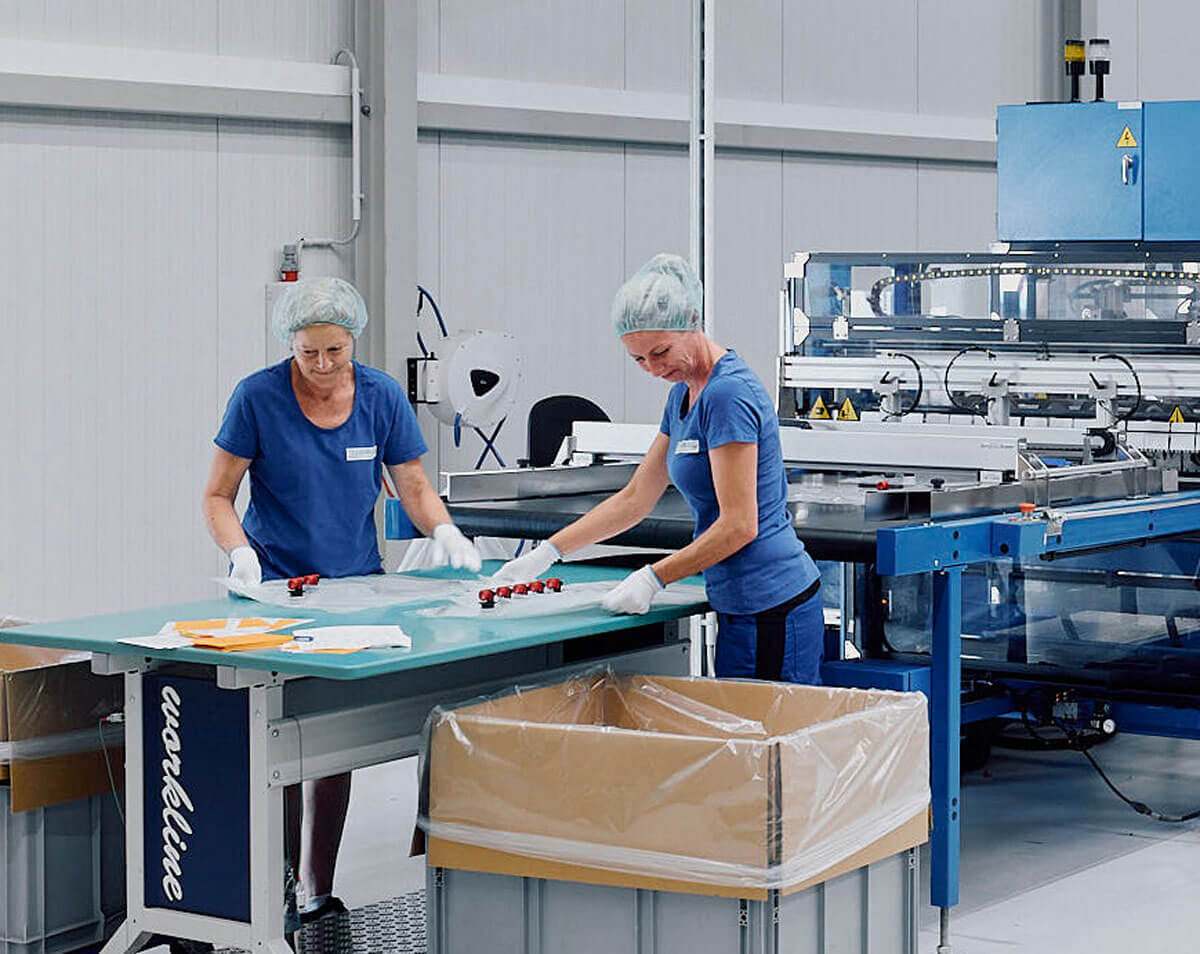

Quality assurance — Reliability at the highest level
Our products are used in sensitive and critical areas — that is why quality and reliability are our top priorities. We manufacture strictly in accordance with the guidelines of “good manufacturing practice” (GMP) and have been certified in accordance with DIN EN ISO 9001 since July 1998. Regular checks in production and in our laboratory ensure the highest standards, and we work exclusively with selected suppliers that are as certified as possible.
Acceptance test certificates and declarations of conformity document the performance and safety of our products.
Bag-in-box systems: Thanks to its compact form and clever design, this packaging offers advantages in terms of logistics, functionality and marketing. The bag collapses when emptied, leaving the product without contact with oxygen — ideal for extended shelf life.
Locking systems: The right solution for every bag-in-box. Whether it's a Tecotap, a screw cap, a post-mix adapter or a snap-on lid closure — we offer a wide range of options and also find tailor-made closures through our network of suppliers.
Aluminum composite foil bags: These bags offer excellent barrier properties against oxygen and water vapor and are ideal for beverages, foods, chemicals and pharmaceutical products. We produce various sizes and shapes according to your requirements, including 3-edge sealed bags, log bottom and round bottom bags.
